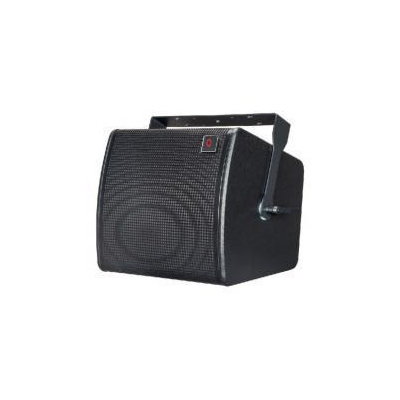

8 "coaxial full frequency point sound source speaker
8 "coaxial full frequency point sound source speaker
COAX-8
8 "coaxial full frequency point sound source speaker

Coaxial technology achieves compact design and consistent sound performance;

The advanced frequency divider design enables the speaker system to have a smooth frequency response over the full power range;

The sturdy birch plywood structure with a thickness of 18 millimeters makes the sound more elastic;

High strength wear-resistant coating, small collision does not damage the box body;

The standard installation bracket allows for flexible wall mounting, lifting, or "hidden" installation under the ceiling;

Telephone:

0755-23417587

Consult Now Consult Now

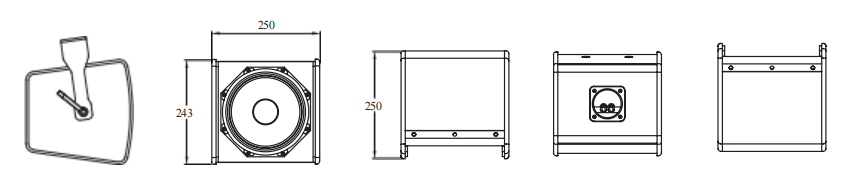

Three-view drawing


Technical Specifications

model COAX-8
name 8 "coaxial full range speaker
Frequency range (-10dB) 75Hz-20kHz
Axial sensitivity (1M/1W) 94dB
Nominal impedance
Maximum sound pressure level (continuous) 116dB
Maximum sound pressure level (peak) 122dB
rated power 200w
Program power 400W
Peak Power 800W
Coverage angle (HxV) 80°x80°
drive unit Bass unit: 8 "x 1; High frequency unit: 1.7 "x1
Box material High density multi-layer plywood, water-based coating
Input connector Red and black terminal posts
Hanging point 2 M8, including mounting bracket
color black
Installation method Multi functional installation
Dimensions (height x width x depth) 243×250×250mm
weight 8kg


File Download
