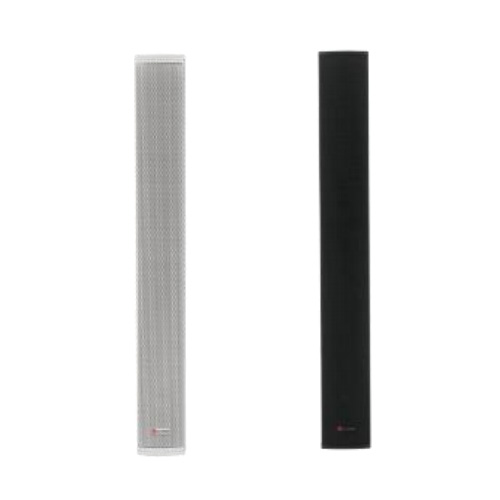

Full band array sound column
Full band array sound column
CLA-214
Full band array sound column

Extraordinary voice and music reproduction effects;

Aluminum alloy shell, sturdy and reliable;

Built in installation accessories for easy and quick installation;

Multiple sound columns can be combined and installed to form a larger column array;

Available in black/white colors;

Specially designed internal acoustic structure reduces the generation of internal standing waves and effectively enhances language clarity;

Telephone:

0755-23417587

Consult Now Consult Now

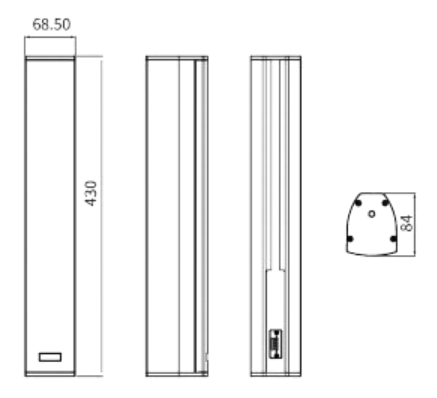

Three-view drawing


Technical Specifications

model CLA-214
rated power 60W
Continuous power 120w
Peak power 240
rated impedance
sensitivity 89±3dB(1M/1W)
Maximum Sound Pressure Level 112±3dB
frequency response 140Hz-20kHz
speaker unit 2 "full frequency x4
mounting hole size Φ6x70x57mm
Speaker installation method bracket installation
Horizontal opening angle (1kHz/-6dB) 120°
Vertical opening angle (1kHz/-6dB) 50°
connection method 2P European terminal
material Profiled iron mesh
color black
Size (mm) 425x85.5x68.4mm
weight 1.7kg
Operating Temperature -25°C°℃ to 55C
Storage temperature -40°C to 70°C
relative humidity ≤95%


File Download
