XCK6
Full frequency point sound source speaker

Constant curvature DOSC (wavefront correction) technology, with good overall diffusion and uniform sound field coverage;

DOSC technology optimizes the phase consistency of array units, reduces interference problems, and achieves smooth frequency response;

New DMD patented dual magnetic drive technology, push-pull structure design, stronger bass;

Single 18 inch subwoofer coupling, system low frequency lower limit as low as 42Hz, more abundant low-frequency energy;

Special connector design, convenient to adapt to various installation methods, and improve installation efficiency;

The connector design with a 7-fold safety factor can connect up to 12 full range speakers;

Compact box design, convenient for installation and handling;

Telephone:

0755-23417587

Consult Now Consult Now

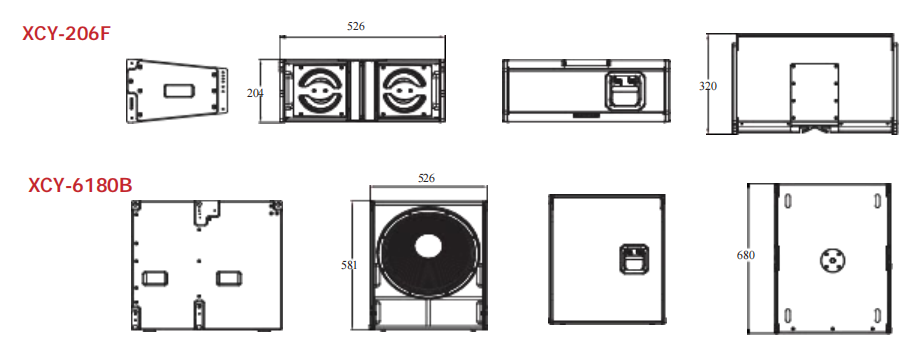

Three-view drawing


Technical Specifications

XCY-206F XCY-6018B

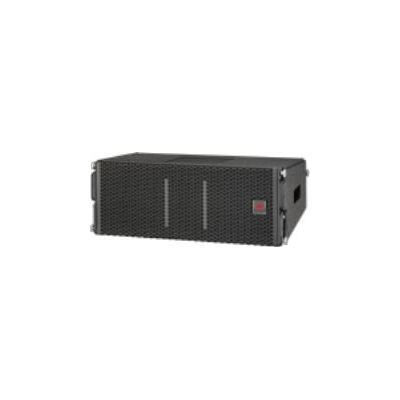

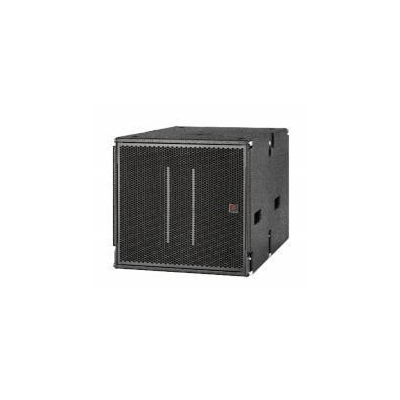

name Dual 6-inch two-way line array full frequency speaker Dual 6-inch line array low-frequency speaker
Frequency response (-10dB) 75Hz~20kHz 42~200Hz
rated power Biamped: LF: 240w@8 Ω, HF: 60W@8 Ω
Pass iv: 240W@8 Ω
600W@8 Ω
Long term power Biamped:LF: 480W@8 Ω, HF: 120W@8 Ω
Pass iv: 480W@8 Ω
1200W@8 Ω
Peak Power Biamped:LF: 960W@8 Ω, HF: 240W@8 Ω
Pass iv: 960w@8 Ω
2400W@8 Ω
Sensitivity (1W/1m) 97dB 97dB
Maximum Sound Pressure Level 120dB continuous, 126dB peak 123dB continuous, 129dB peak
Coverage angle (HxV) 120°x10° 360°
Frequency division method
Bass Unit 2x6.5 ", 2.2" voice coil 1x18”, 4 "voice coil
tweeter 1 "throat, 1.7" voice coil ——
Module adjustable angle 0°, 2°,4°,6°,9°,12° ——
Suspension system metal connection metal connection
Box material High hardness multi-layer plywood, water-based coating High hardness multi-layer plywood, water-based coating
input method 2 x NL4 speaker sockets 2 x NL4 speaker sockets
Size (WxHxD) 526x204x320mm 526x580x680mm
weight 16kg 47kg
