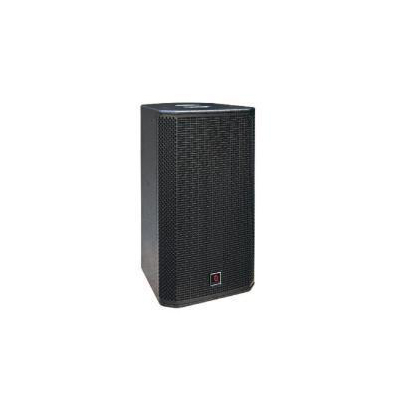

Full frequency point sound source speaker
Full frequency point sound source speaker
XCK12
Full frequency point sound source speaker

Low distortion speaker system, restoring the most authentic sound

Using Cool Coil ™ Technology, more efficient heat dissipation, increased power load, stronger power, carefully crafted frequency division design circuit, improves frequency response in the division point area, and reduces acoustic coloration;

Adopting multi-layer plywood birch wood box, it is more sturdy and has more elastic sound;

Multi support hole design at the bottom, supporting flat support and 10 ° forward leaning support installation;

Telephone:

0755-23417587

Consult Now Consult Now

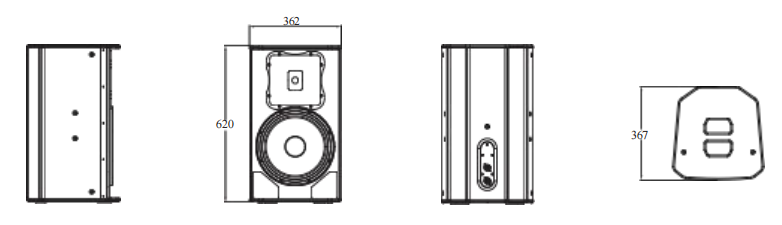

Three-view drawing


Technical Specifications

model XCK12
name 12 inch two-way professional speaker
Frequency response (-10dB) 60~20KHz
rated power 400W
Long term maximum power 800w
Peak Power 1600W
Sensitivity (1W/1m) 97dB
Maximum Sound Pressure Level 122dB continuous; 128dB peak
Coverage angle (HxV) 90°x50°
impedance
Bass Unit 12"
tweeter 1.7"
lifting point 14 M8 suspension points
Box material Two 35mm support holes, one at 0 ° and one at -10 °, high hardness multi-layer plywood water-based coating
color black
input method 2 x NL4 speaker sockets
Size (WxHxD) 620mmx362mmx367mm
Gross Weight 29kg
